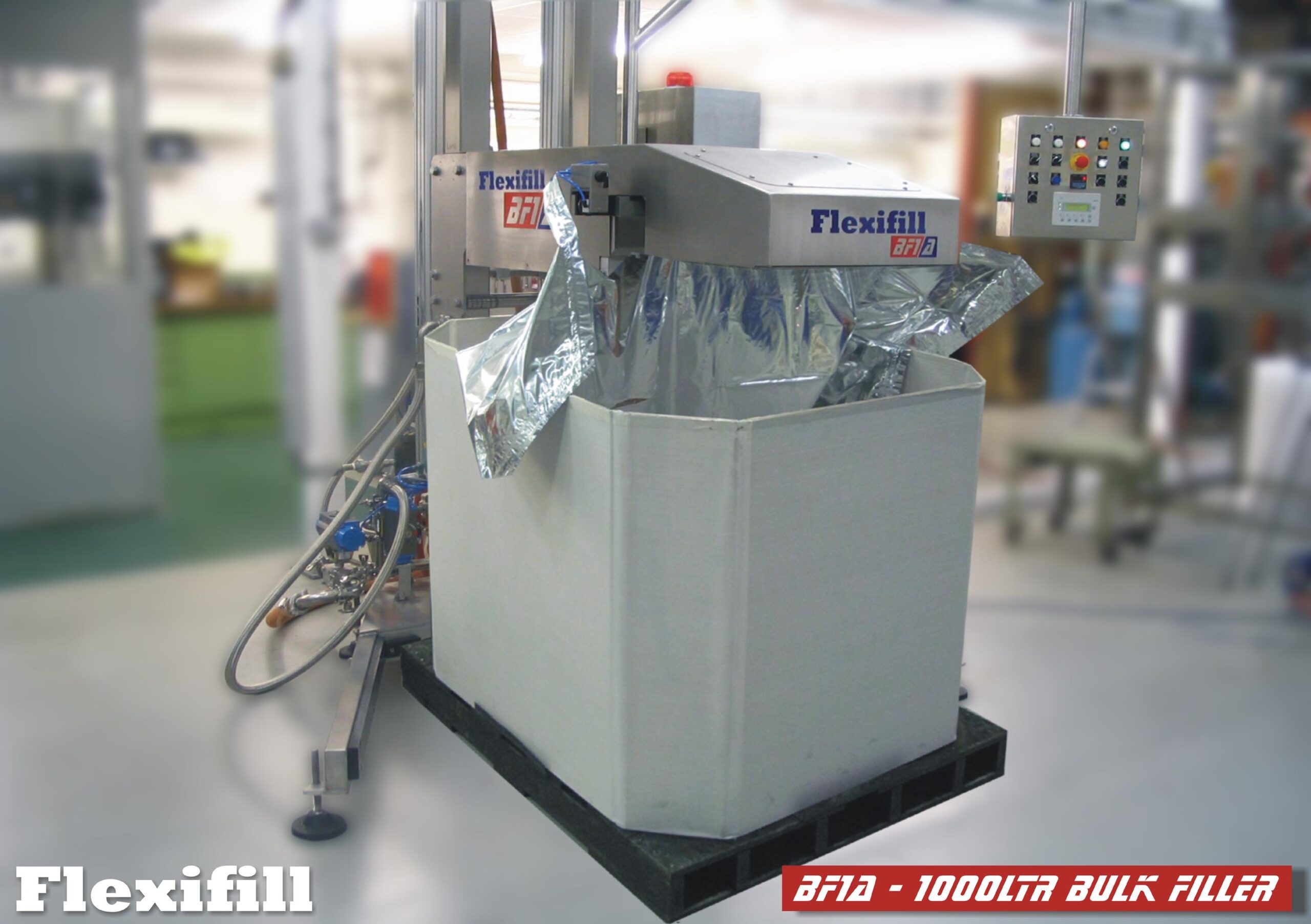

BF1A Filling Machine

aseptic bulk filling machine up to 1000 litres

The Flexifill BF1A is a semi-automatic aseptic bulk filler, simple to operate and service.

Handles bags up to 1000 litres for both one trip and returnable containers.

With an optional small bag filling table, bags from 3 to 20 litres can be filled making this a very versatile filler.

A model to fill particulates up to 20mm is also available.

All parts manufactured from stainless steel to a very high standard with CE conformity, material in contact with product stainless steel AISI316.

Operational description

The Flexifill BF1A is semi-automatic in bag loading and unloading but the filling cycle is fully automated.

Once the bag has been placed in the container and the lower gland located, the upper filling gland is then located in the jaws and the two hand start pressed.

The bag is raised by the filling head and the filling cycle begins.

The filler encloses the cap in a sealed chamber then steam sterilises the cap and gland. Click for details.

The bag is then de-capped and filled with product, re-capped, steam flushed and released from chamber.

Performance

Typical output filling at 4 litre/sec flow rate to the filler is:

4 x 1000 litre bags/hour.



Standard features

FLEXIFILL provides tailored solutions to meet every filler need, ensuring efficiency and precision at every step.
  • Full CIP and SIP modes
  • Turbine Flowmeter
Full CIP and SIP modes
Full CIP and SIP modes

CIP (CLEAN IN PLACE)

SIP (STERILISE IN PLACE)

allows all ports and valves in contact with product to be opened for in place cleaning.

Turbine Flowmeter
Turbine Flowmeter

Turbine flowmeter is our standard meter for non-aseptic liquid products

Optional Features​​

Our knowledge and understanding of the industry use of packaging materials, fitments and dispense equipment are major advantages when we initiate the design of new filling lines.
  • ATEX
  • Drum Filling Turntable
  • Small Bag Filling Table
  • Mass or Magnetic Flowmeter
ATEX
ATEX

Flexifill machines can have the option to confirm to a low level Atex category 3.

Drum Filling Turntable
Drum Filling Turntable

Enables up to four drums to be filled in situation before removal of the completed pallet.

Small Bag Filling Table
Small Bag Filling Table

The optional small bag table enables the filling of bags up to 20 litres without the need for another filler.

Mass or Magnetic Flowmeter
Mass or Magnetic Flowmeter

Mass or magnetic flowmeter can be supplied as an option to the turbine flowmeter. The flowmeter will give a high degree of accuracy for a wide range of process conditions.

Dimensions and layouts

To find out more about the BF1A Filling Machine please get in touch…

The team at Flexifill are ready to discuss your requirements

You can call us on +44 (0)1454 418 599

or email us at admin@flexifill.co.uk.
